Free Shipping & 3-Year Warranty!
Pay in 3 interest-free payments of £15.33.Accessories: 10-in-1 USB C Hub
£45.99

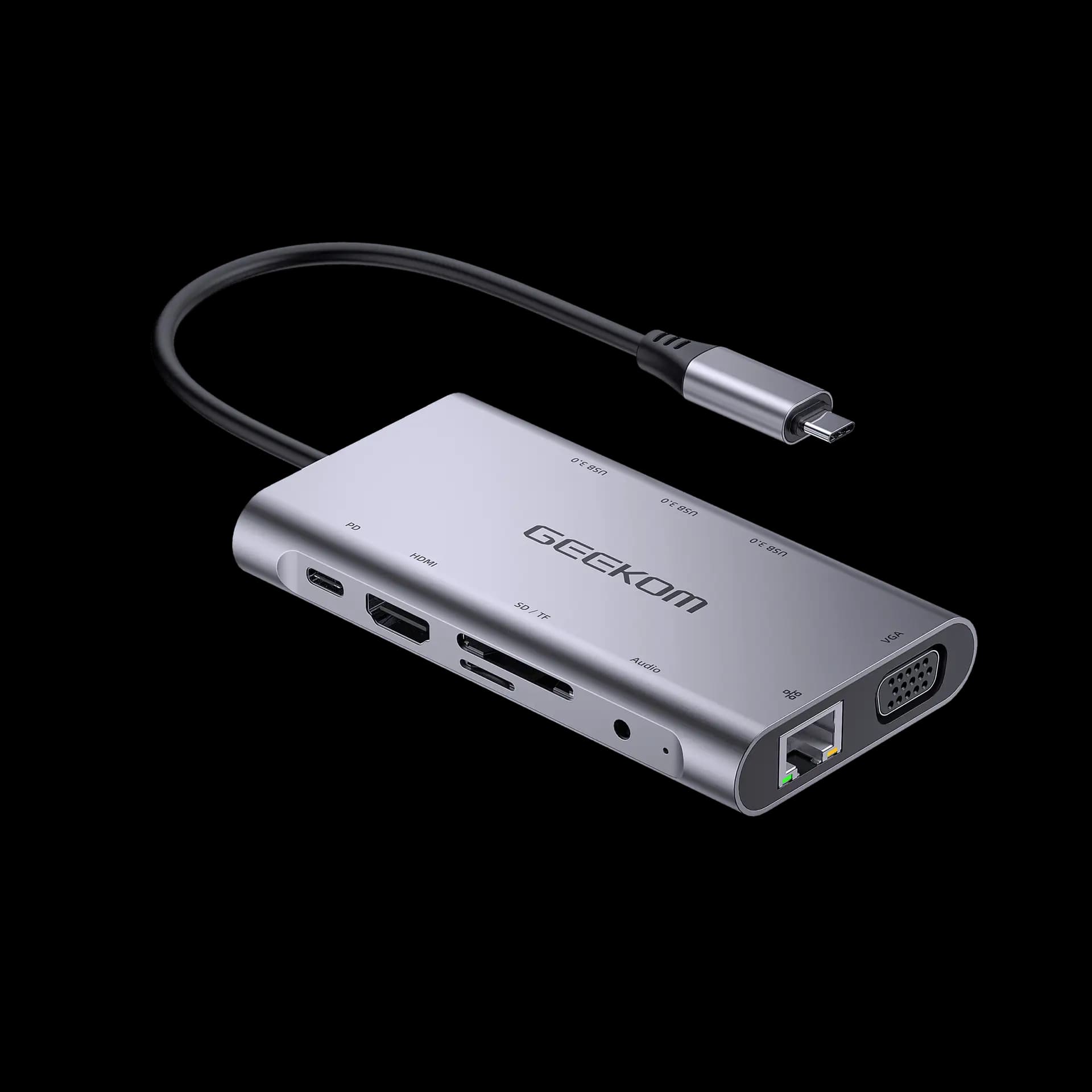

This USB-C docking station, with its multiple ports, allows you to connect a host PC to monitors or devices with HDMI, VGA and USB3.0 ports, and also allows your host PC to get access to fast network with its Gigabit Ethernet port. Besides, the SD/MMC and Micro SD card slot helps to access the external memory of the host PC and the USB-C female port can charge for the host computer.
Figure 1-1 Dimensions (Unit: mm [inch])
1.2 Port and Application scene Figure 1-2 Port and Application scene
Table 1-1 Description of port
| No. | Input/Output Connector | Name | Description |
| 1 | Input | USB-C Male x1 | The USB-C connected to laptops, tablets, mobile phones, game consoles and other devices |
| 2 | Output | HDMI Female x1 | The resolution is up to 3840X2160@30Hz |
| 3 | Output | VGA Female x1 | The resolution is up to 1920x1080P@60Hz |
| 4 | Output | USB 3.0 Female x3 | Total output power: 15W (5V@1.5A) Power output of up to 7.5W(5V1.5A for one port alone or 2 ports for PD adapter charging) |
| 5 | Output | RJ45 X1 | Support 10/100/1000Mbps bandwidth |
| 6 | Output | Audio x1 | The headphone jack supports both a microphone and headphones |
| 7 | Output | SD card slot x1 | The maximum read speed is 70Mbps and the maximum write speed is 90Mbps |
| 8 | Output | Micro SD card slot x1 | Micro SD / SDHC (up to 128 GB) |
| 9 | Output | USB-C Female x1 FOR CHARING | MAX 100W |
Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:
2.2 Operation
Note:
